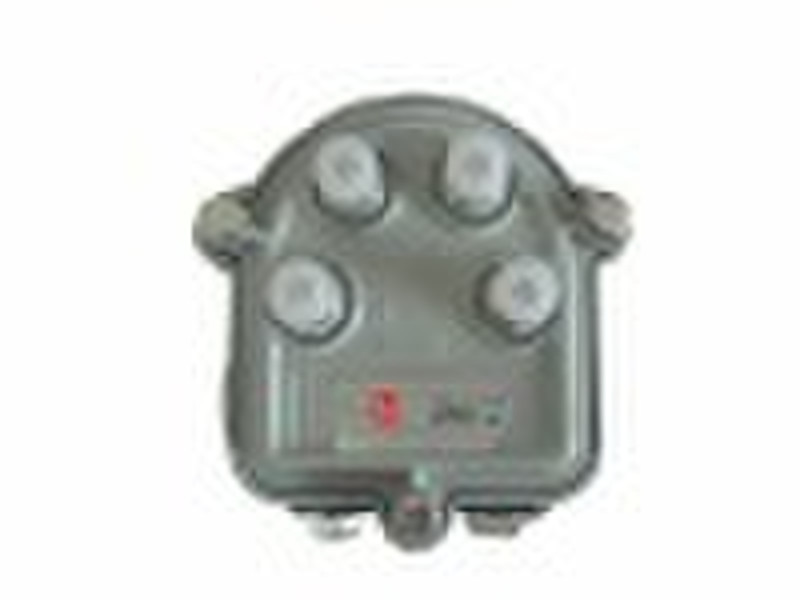

CATV Outdoor Tap

OUTDOOR TAP SERIES- RFI (woven metallic) gasket ensures against ingress/egress interference, >100dB RFI shielding- Stainless steel hardware and aluminum port caps for corrosion resistance- Aluminum alloy housing with weather resistant powder coating and spray painting- Weather seal gasket ensures water tight protection, tested at 15 psi / 60s- Umbrella-effect housing design prevents accumulation of water at ports- Weatherproof, self-sealing F ports prevent breathing through ports when subscriber is disconnected; epoxy glue (or high quality silicon glue) on all F-ports inside- Bright Tin- or Ni-plated, brass F ports offer increased strength and protection against corrosion in severe environmental conditions- Heat shrink ridges for easy installation- 2-layer P.C.B Printed Circuit Board with high quality FR4 board for RF applications- Support plug- in attenuation module for easy to exchange the tap value/tap loss- Include signal / power passing bar when faceplate is removed (Uninterrupted power passing)- Waterproof Condition: 15 psi (1.0 kg/cm2)- All IN and OUT ports are 5/8-24 female standard, all TAP ports are 3/8-32 female standard; Nominal Impedance (all ports): 75 Ohms- Power Passing: 10A, 90 VAC (IN - OUT)- Using high quality chip capacitors and chip resistors- High Voltage Blocking Capacitors - All ports Surge Withstand: All Tap ports at IEEE C62.41-1991 Category A3 (0.5 μs - 100 kHz Ring Wave, 6000 V, 200 A), Input / Output ports at IEEE C62.41-1991 Category B3 (1.2/50 μs - 8/20 μs Combination Wave, 6000 V, 3000 A)Outdoor Tap 4way seriesTAP VALUE (dB)INSERTION LOSS max.8111417202326295 - 65 MHz-3.91.81.31.31.00.90.965 - 550 MHz-4.22.21.51.51.21.11.1550 - 750 MHz-4.62.51821.81.41.31.3750 - 1000 MHz-5.03.02.32.21.61.51.5TAP LOSS max. (±1.5dB for all F ports)5 - 65 MHz8.311.314.317.320.323.326.329.365 - 550 MHz8.611.614.617.620.623.626.629.6550 - 750 MHz8.911.914.917.920.923.926.929.9750 - 1000 MHz9.212.215.218.221.224.227.230.2ISOLATION OUT-TAP min.5 - 1000 MHz-25282931323334ISOLATION TAP-TAP min.5 - 1000 MHz2727272727272727RETURN LOSS IN & OUT min.5 - 1000 MHz1717171717171717RETURN LOSS TAP min.5 - 1000 MHz1818181818181818HUM MODULATIONmax.5 - 1000 MHz @ 10 A-70-70-70-70-70-70-70-705 - 1000 MHz @ 12 A-65-65-65-65-65-65-65-65
