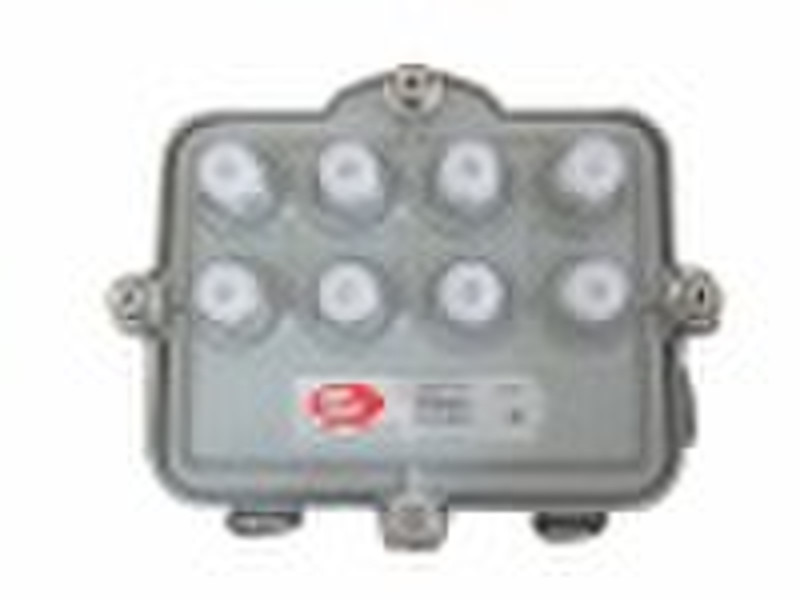

CATV Outdoor Tap

OUTDOOR TAP SERIES- RFI (woven metallic) gasket ensures against ingress/egress interference, >100dB RFI shielding- Stainless steel hardware and aluminum port caps for corrosion resistance- Aluminum alloy housing with weather resistant powder coating and spray painting- Weather seal gasket ensures water tight protection, tested at 15 psi / 60s- Umbrella-effect housing design prevents accumulation of water at ports- Weatherproof, self-sealing F ports prevent breathing through ports when subscriber is disconnected; epoxy glue (or high quality silicon glue) on all F-ports inside- Bright Tin- or Ni-plated, brass F ports offer increased strength and protection against corrosion in severe environmental conditions- Heat shrink ridges for easy installation- 2-layer P.C.B Printed Circuit Board with high quality FR4 board for RF applications- Support plug- in attenuation module for easy to exchange the tap value/tap loss- Include signal / power passing bar when faceplate is removed (Uninterrupted power passing)- Waterproof Condition: 15 psi (1.0 kg/cm2)- All IN and OUT ports are 5/8-24 female standard, all TAP ports are 3/8-32 female standard; Nominal Impedance (all ports): 75 Ohms- Power Passing: 10A, 90 VAC (IN - OUT)- Using high quality chip capacitors and chip resistors- High Voltage Blocking Capacitors - All ports Surge Withstand: All Tap ports at IEEE C62.41-1991 Category A3 (0.5 μs - 100 kHz Ring Wave, 6000 V, 200 A), Input / Output ports at IEEE C62.41-1991 Category B3 (1.2/50 μs - 8/20 μs Combination Wave, 6000 V, 3000 A) Outdoor Tap 8way seriesTAP VALUE (dB)INSERTION LOSS max.111417202326295 - 65 MHz-3.91.81.41.41.01.065 - 550 MHz-4.42.21.81.71.41.3550 - 750 MHz-4.92.82.32.11.61.5750 - 1000 MHz-5.13.32.72.42.01.9TAP LOSS max. (±1.5 dBfor all F ports)5 - 65 MHz11.214.217.320.323.326.329.365 - 550 MHz11.614.617.620.623.626.629.6550 - 750 MHz1215.018.021.024.027.030.0750 - 1000 MHz12.415.418.421.424.427.430.4ISOLATION OUT-TAP min.5 - 1000 MHz-282930323334ISOLATION TAP-TAP min.5 1000 MHz27272727272727RETURN LOSS IN & OUT min.5 - 1000 MHz17171717171717RETURN LOSS TAP min.5 - 1000 MHz18181818181818HUM MODULATION max.5 - 1000 MHz @ 10A-70-70-70-70-70-70-705 - 1000 MHz @ 12A-65-65-65-65-65-65-65
